12 VDC - 20A - Synchronized Dual Hall Effect Actuator Control - Wireless Remotes

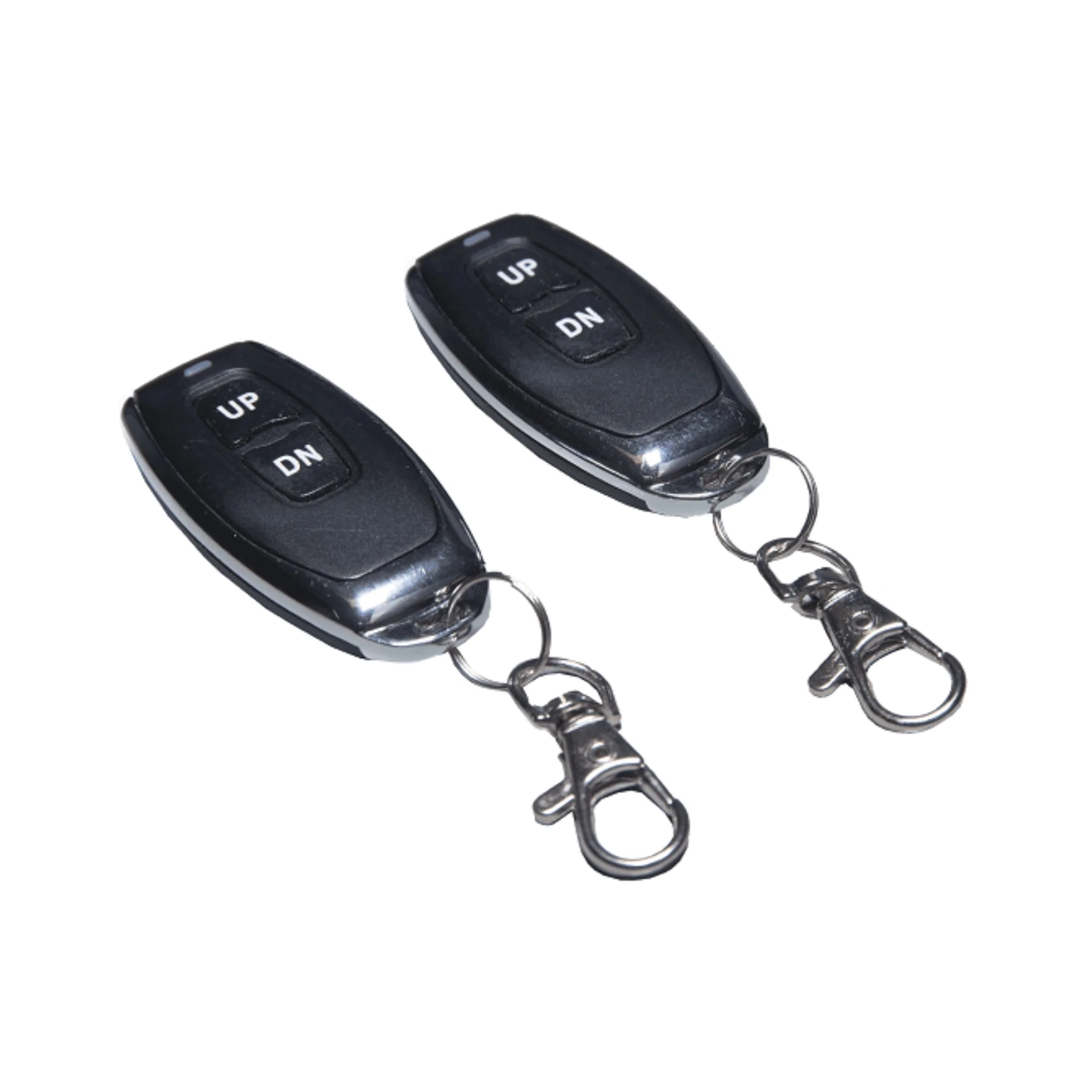

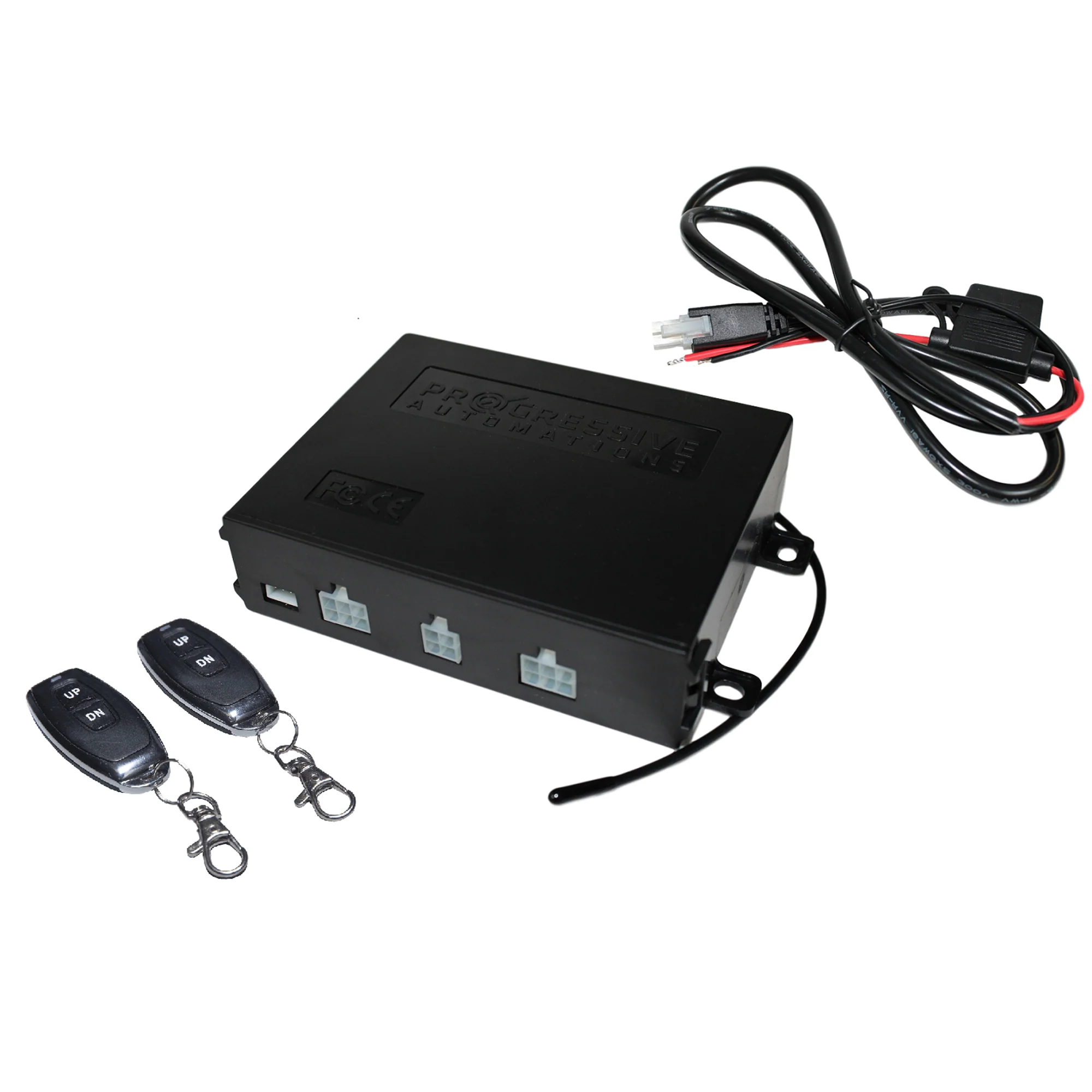

The PA-40 control box allows for synchronous control of two linear actuators with hall effect feedback. Using the RF remote provided, users have the ability to extend, stop, and retract their synchronized actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

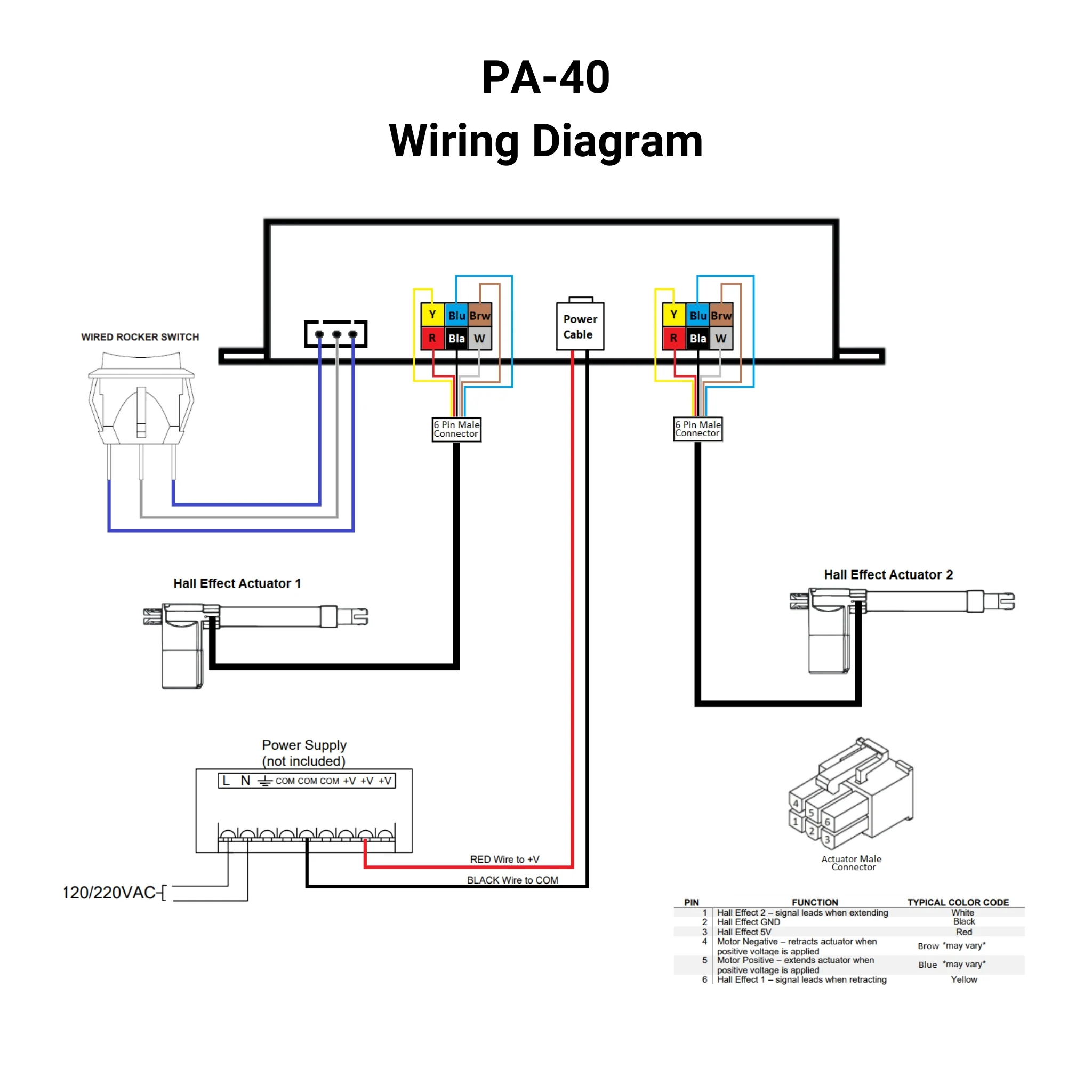

Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-40 is designed to handle a maximum of 10A per channel.

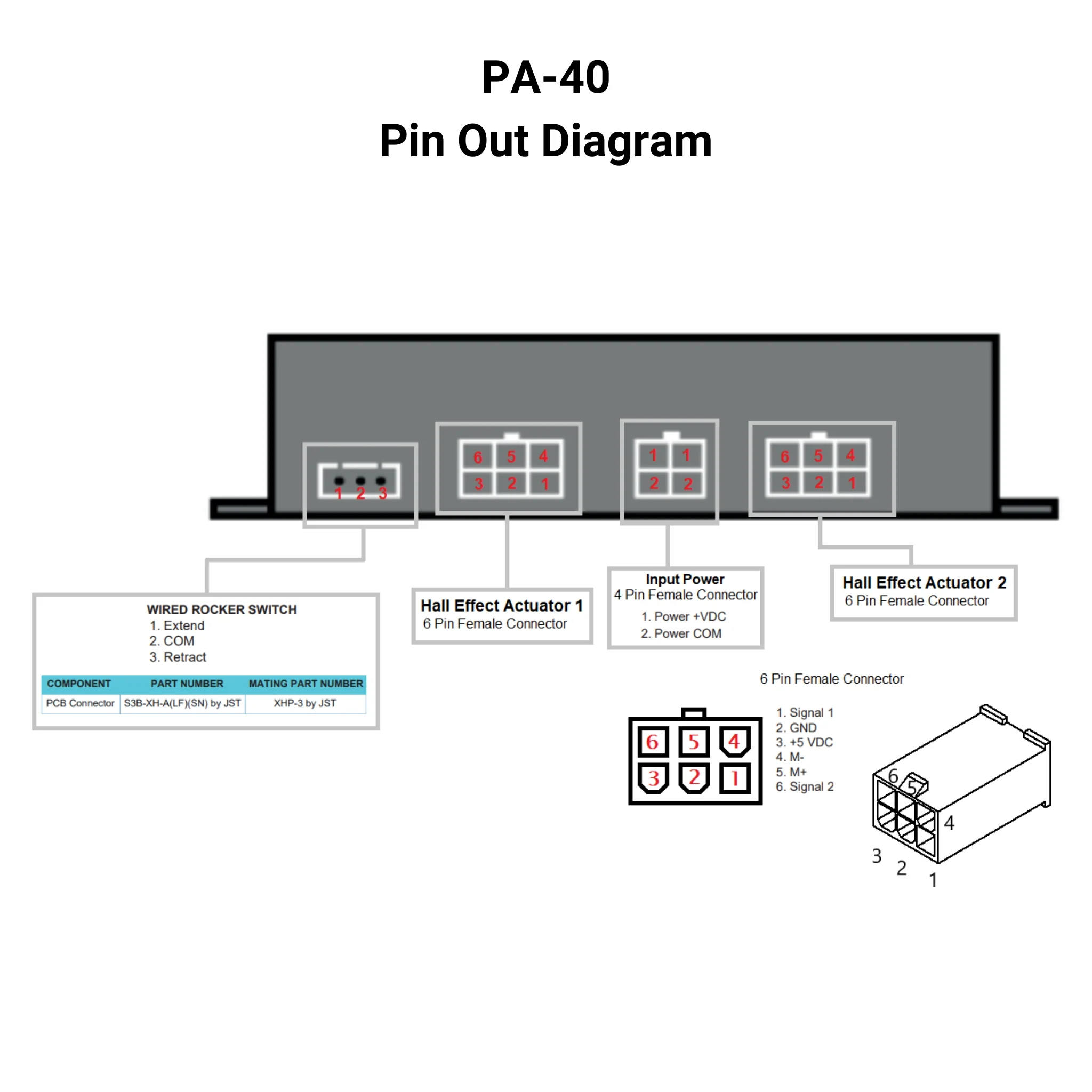

Please see the PA-40 Data Sheet for information about controls, wiring, and troubleshooting.

* Parallel control of linear actuators at 12 VDC.

* Only compatible with 12 VDC hall effect type actuators. Controls 2 matching Hall Effect actuators simultaneously to travel the same speed together in the same direction. Ensure PA-04-HS actuators are not fully loaded to stay within the current rating.
